Plastic Lid Thermoforming Machine for Manufacturing PP/PET Cup Lids | OEM Supplier

🔹 Application Scope & Product Types

This high-performance thermoforming machine is engineered for the mass production of plastic cup lids, shallow trays, blister packs, and similar thin-wall containers.

Compatible materials include PVC, PET, HIPS, and PLA, making it suitable for a wide range of industries:

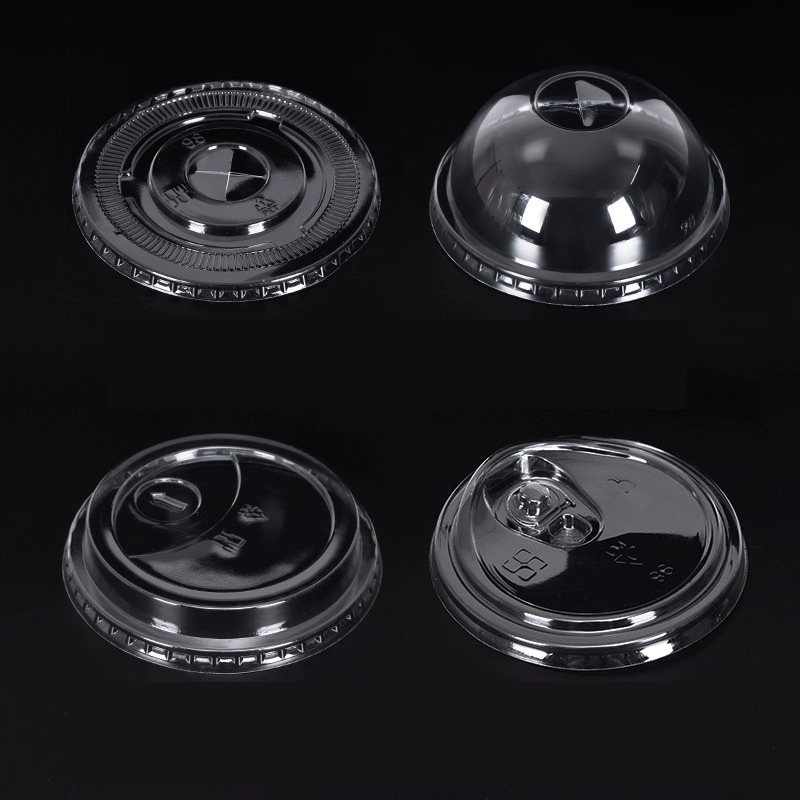

• Beverage lids (dome/flat/sip type)

• Blister packaging for electronics or hardware

• Medical trays, meal prep containers, and daily-use food packaging

• Multi-cavity trays for supermarket products

🔹 Forming Area Advantage

✅ Max Forming Area: 450mm (Length) × 300mm (Width) × 46mm (Depth)

With a 30cm-wide forming window, this machine supports larger mold sizes and more complex lid/tray structures, significantly increasing per-cycle output. Ideal for multi-cavity mass production with consistent shape accuracy.

🔹 Integrated Forming System

This automatic thermoforming line combines

1. Roll sheet unwinding & feeding

2. Electric heating + vacuum/pressure forming

3. Hole punching, edge cutting & trimming

4. Stacking and counting of finished lids/trays

Powered by a reliable PLC + touchscreen system, it ensures high precision and minimal scrap rate under 24/7 production.

🔹 Technical Features

• Material Support: PVC / PET / HIPS / PLA

• Production Speed: 15–35 cycles per minute

• Power Supply: 6 kW total

• Air Pressure Requirement: 0.6–1.0 MPa

• Air Consumption: ≥ 3m³/min

• Cooling Requirement: 60L/h tap or recycled water

• Machine Dimensions: 4000×1200×1900 mm

• Machine Weight: 2200 kg

🔹 Performance Features

• Servo-driven feeding with synchronized motion system

• Fast mold change and easy adjustment of stroke depth

• CE-certified safety enclosure and insulation design

• Optional scrap winder and automatic lid stacker

• Durable structure suitable for continuous heavy-duty use

🔹 Industries Served

• Beverage cup lid manufacturing

• Blister tray factories for electronics & hardware

• Food container & meal prep packaging

• Custom thermoformed OEM projects

• Medical device packaging

✅ Frequently Asked Questions (FAQ)

Q1: What types of products can I make with YK-TF450A?

A: This model is ideal for producing plastic cup lids (flat, dome, straw-insert types) and small blister packaging used in food, beverage, or cosmetics.

Q2: What materials are supported?

A: The machine is compatible with PET, PVC, HIPS, and PLA sheets. It is not suitable for PP due to PP’s high forming temperature requirements.

Q3: What is the forming area and depth?

A: The forming area is 450mm × 130mm, with a maximum forming depth of 46mm, making it suitable for high-speed production of small to medium-sized lids.

Q4: What is the typical output speed?

A: The machine operates at 15–35 cycles per minute, depending on mold design and material. With a 4–6 cavity layout, hourly output can exceed 9,000 lids.

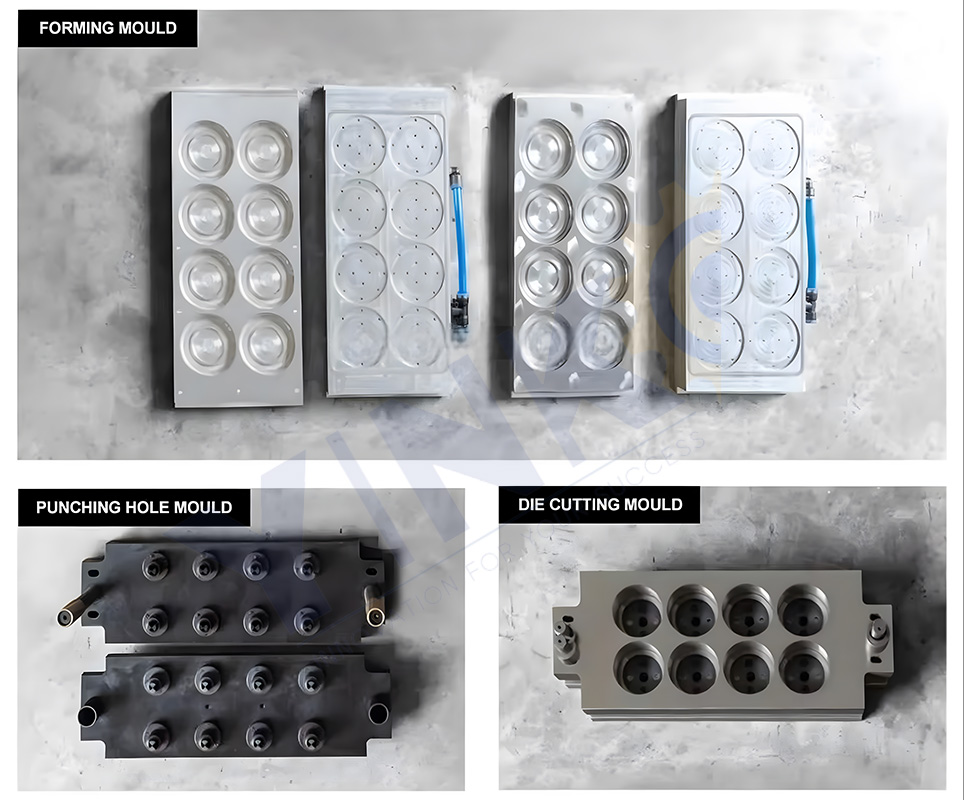

Q5: Is mold customization available?

A: Yes, we offer custom mold services based on your product specifications or samples. Multi-cavity design and logo embossing are supported.
